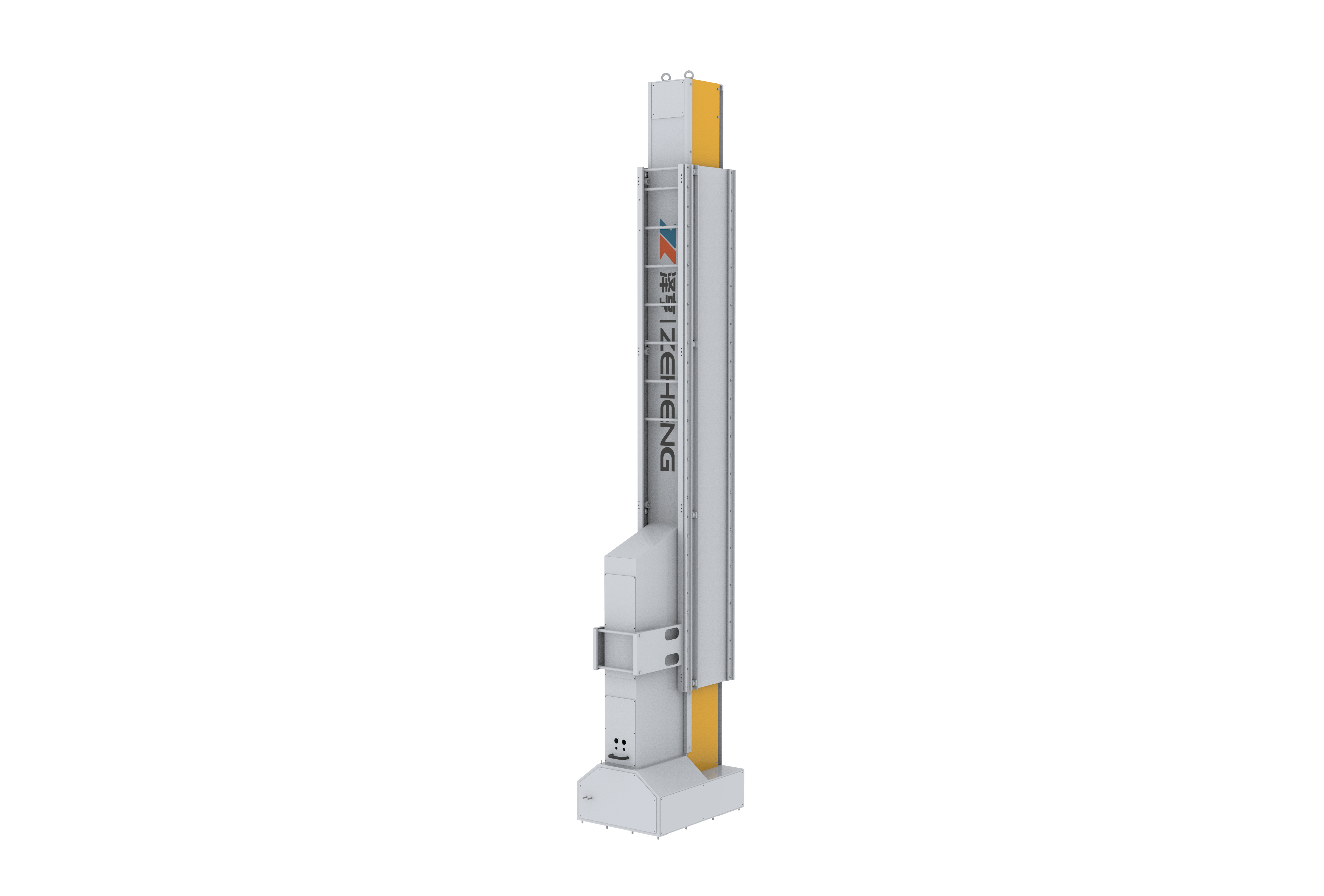

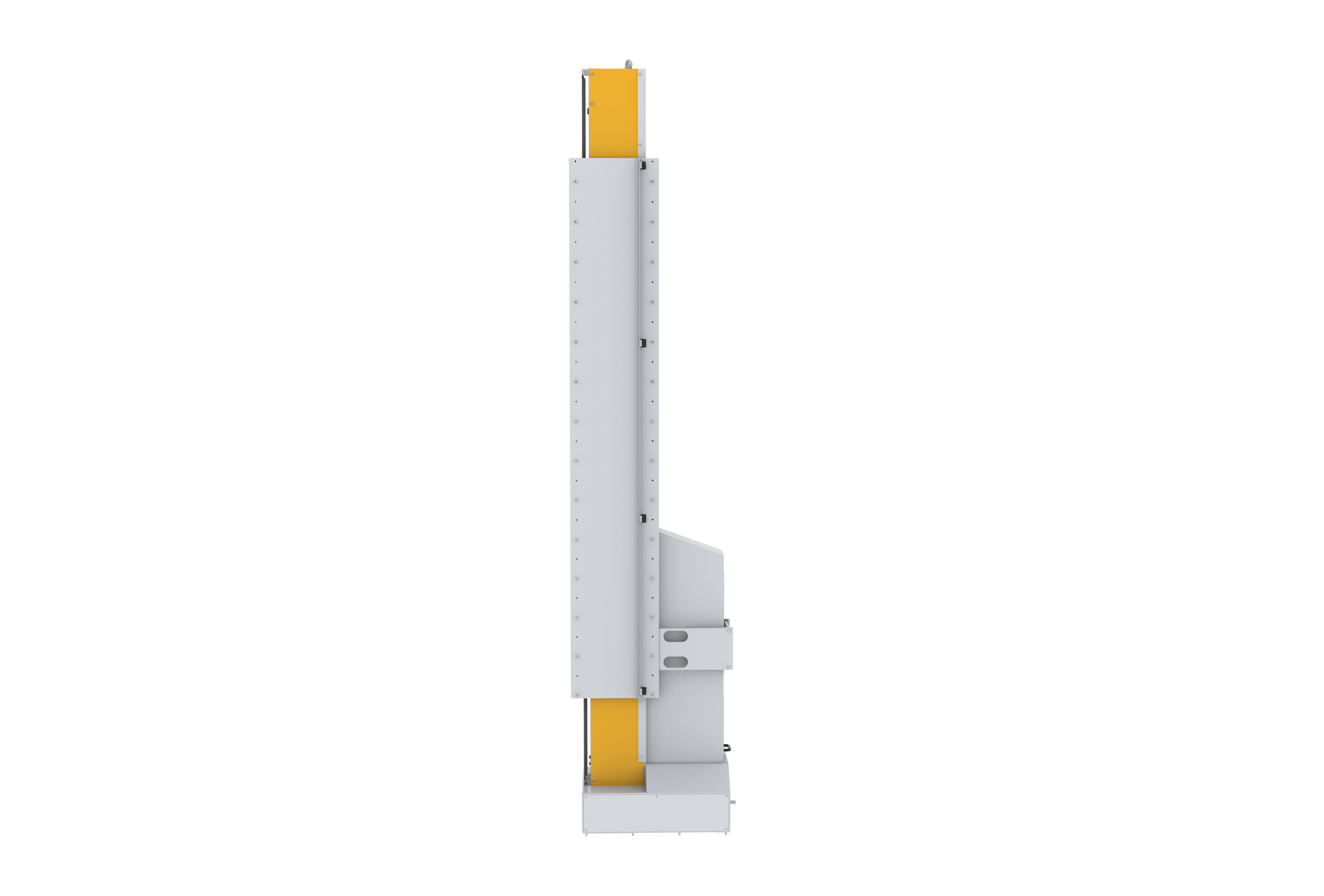

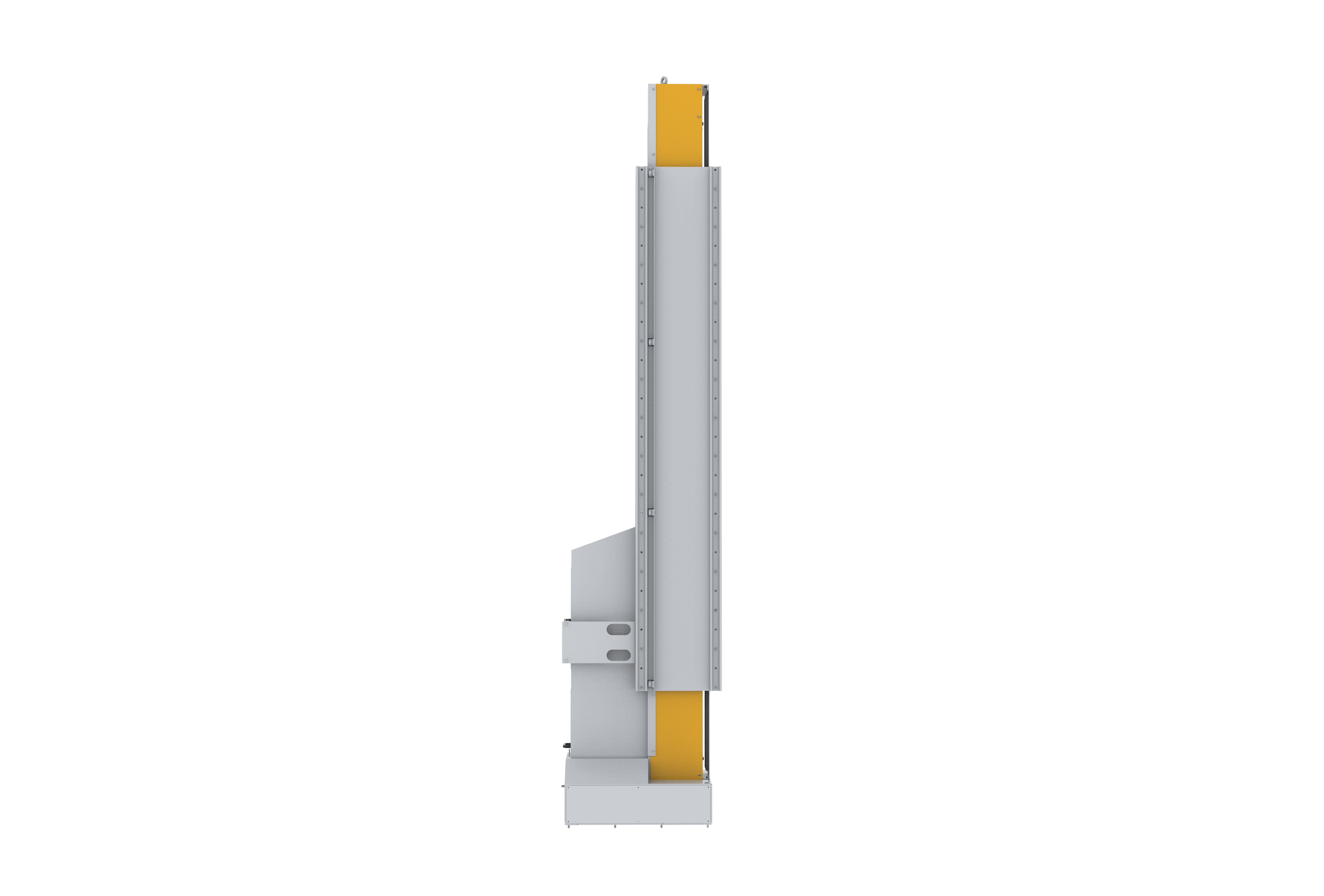

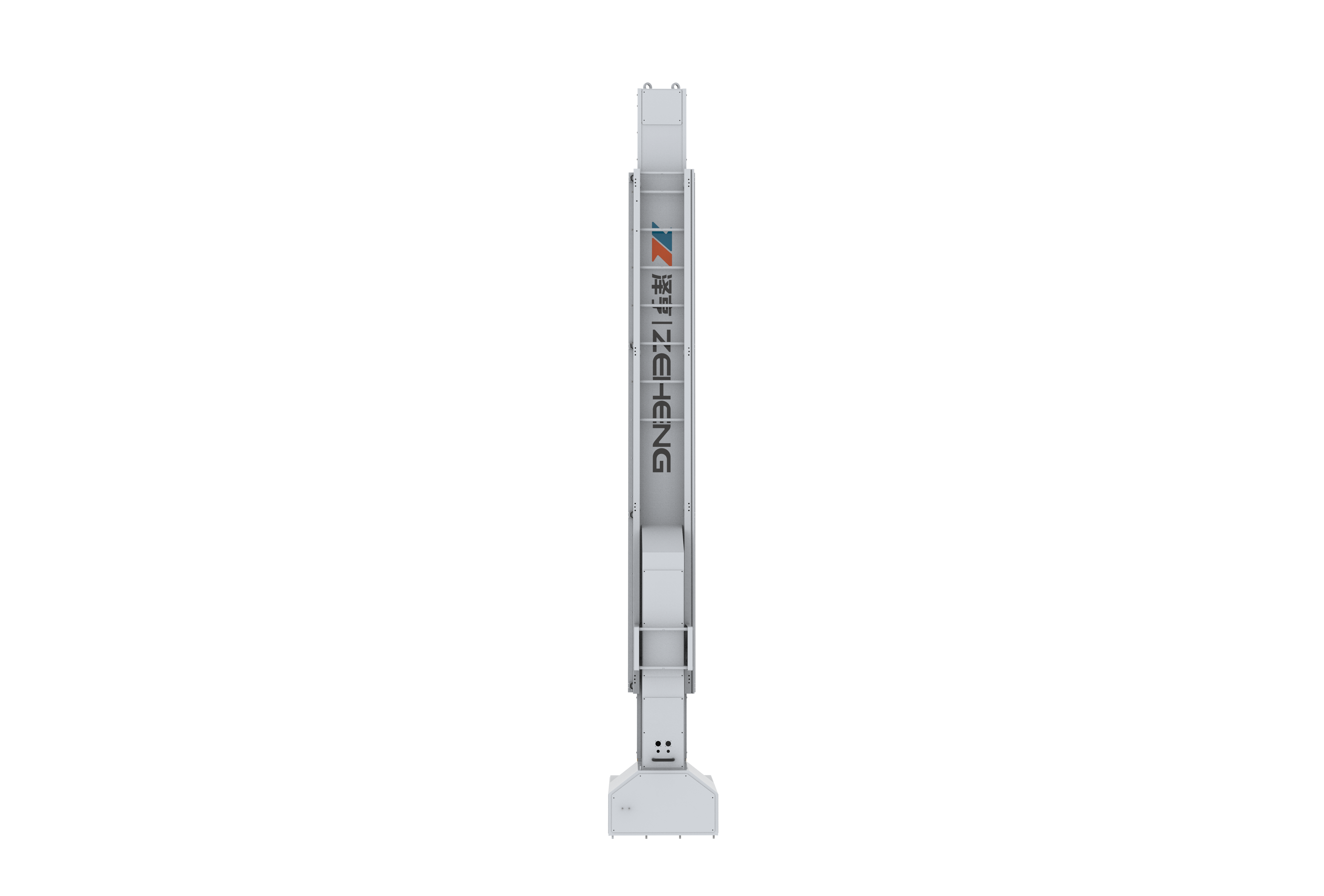

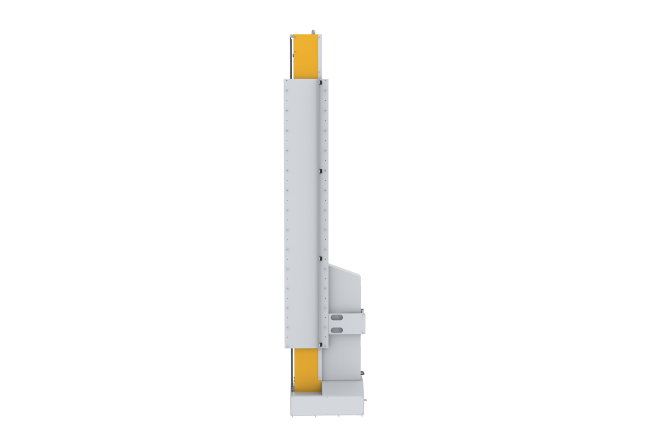

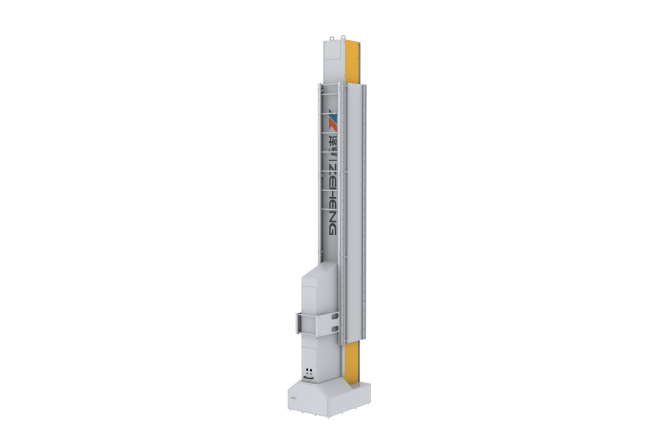

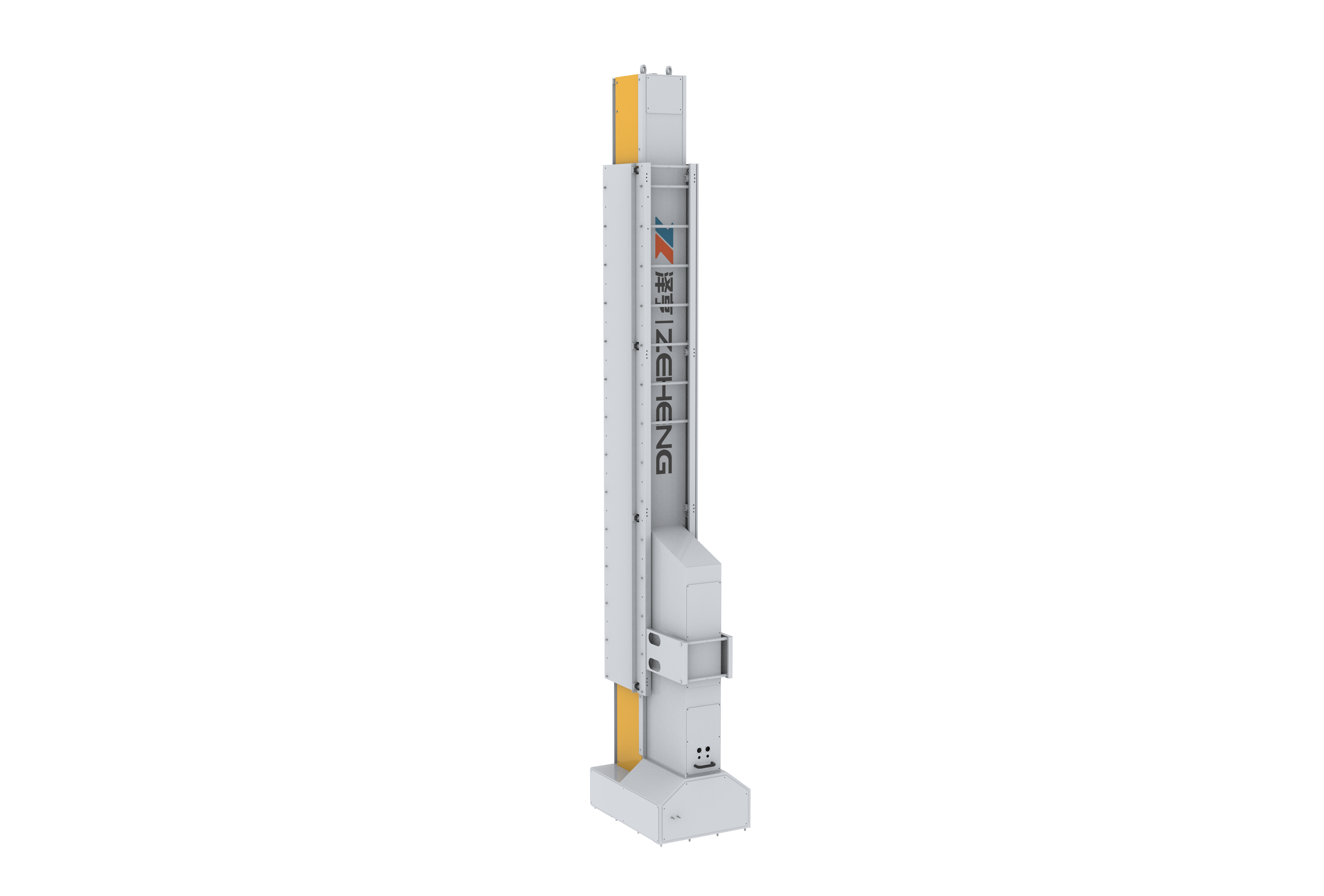

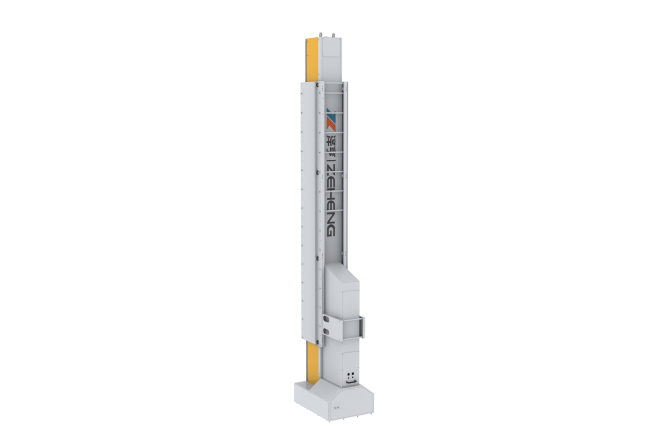

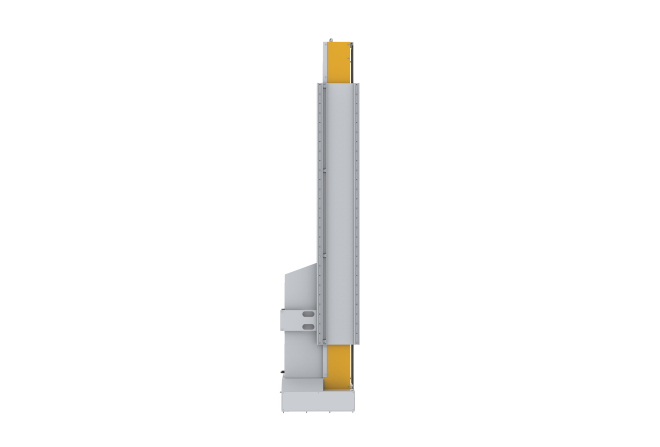

RECIPROCATORS

Basic Parameters

• Load Capacity: 150kg (KSZA13-3280); 120kg (KSZA13-2000)
• Travel Distance: 1000mm
• Mounting Surface Height: 3280mm (KSZA13-3280), 2000mm (KSZA13-2000)
• Speed: 0.01-0.4m/s
• Acceleration: 0.1-1.5m/s^2
• Precision: Repeated positioning accuracy of ±0.1mm
• Position Detection: Absolute encoder
• Communication Protocol: CANopen/EtherCAT
• Drive Parameters: 3kw (KSZA13-3280), 2kw (KSZA13-2000)
• Footprint: 650*900*4700mm; 650*900*3877mm

Features

• Heavy load: Able to mount many U-axis systems, both UA03 and UA04, in a linear fashion.
• Large mounting surface range: Mounting surface heights of 3280mm and 2000mm, adaptable to workpiece height, capable of matching high workpieces with a single unit.
• Transmission principle and mounting portability: Adopts synchronous belt transmission, with high transmission positioning accuracy and low noise; mounted on both sides, with easy mounting and high expand-ability.
