Basic Parameters
Load capacity: 700kg (including the bracket, for robots like the MPX2600)
Travel distance: Standard options of 4000mm are available (customization is acceptable in special circumstances)
Speed: 0.01-0.5m/s (non-linked version), 0.01-0.7m/s (linked version)
Acceleration: 0.1-1.5m/s^2
Precision: Repeat positioning accuracy of ±0.1mm
Drive parameters: 2.0kw (explosion-proof and linked options available)
Special note: All the above parameters can be customized according to actual needs
Features

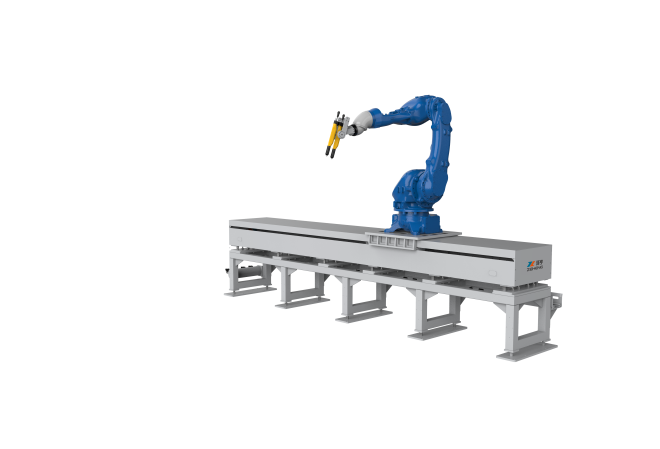

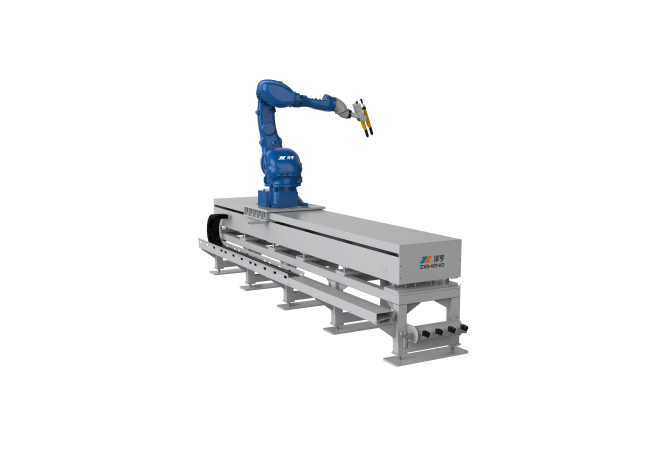

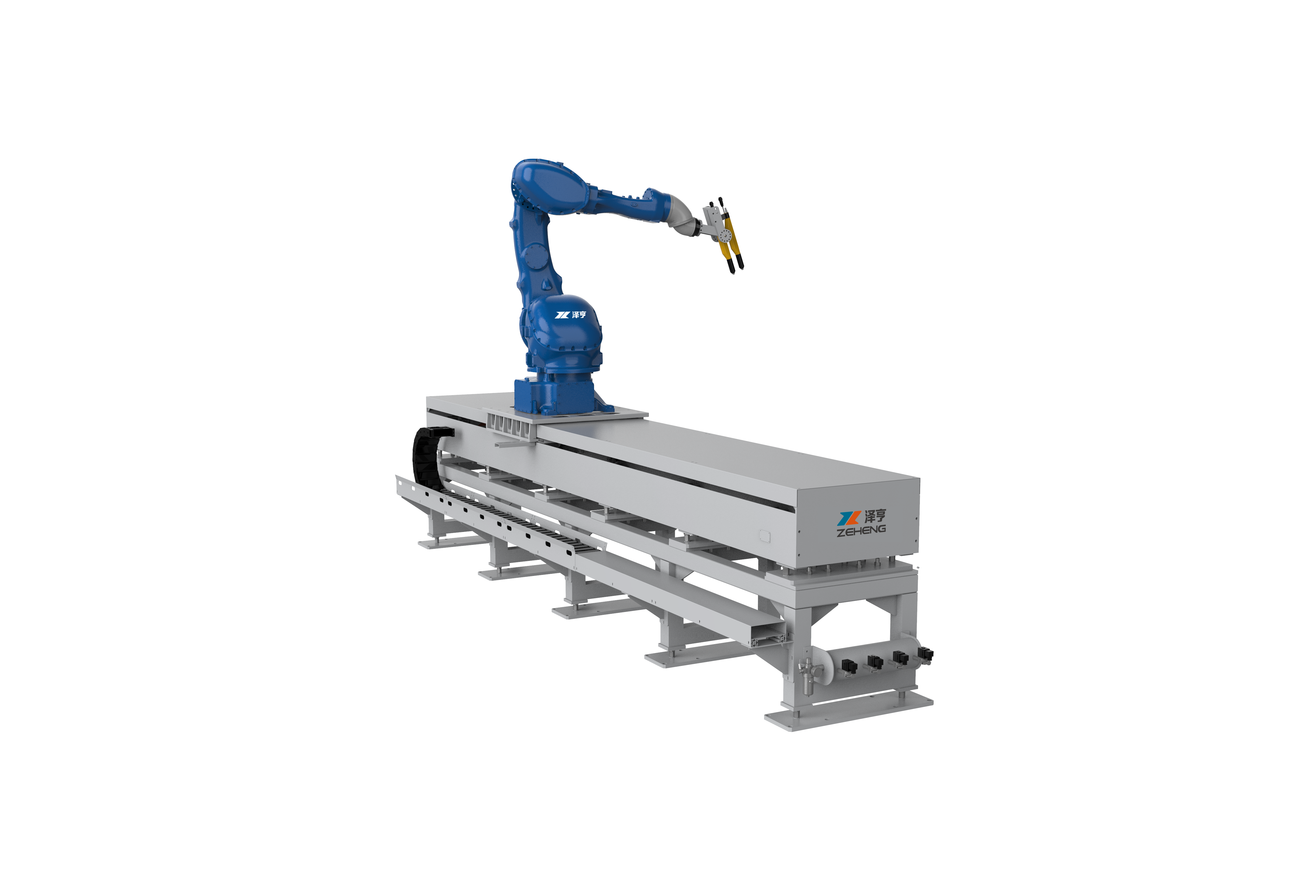

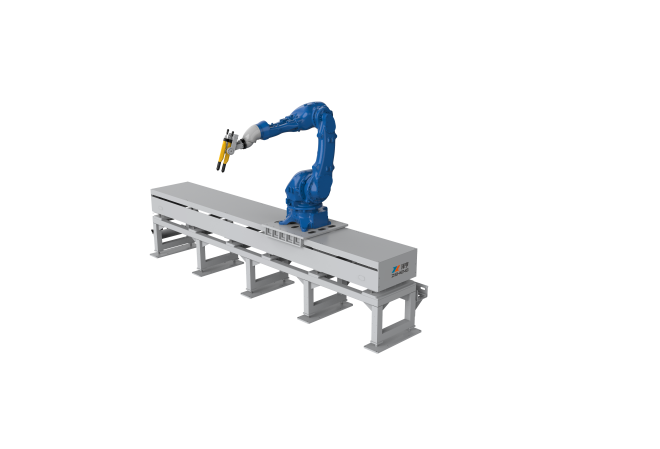

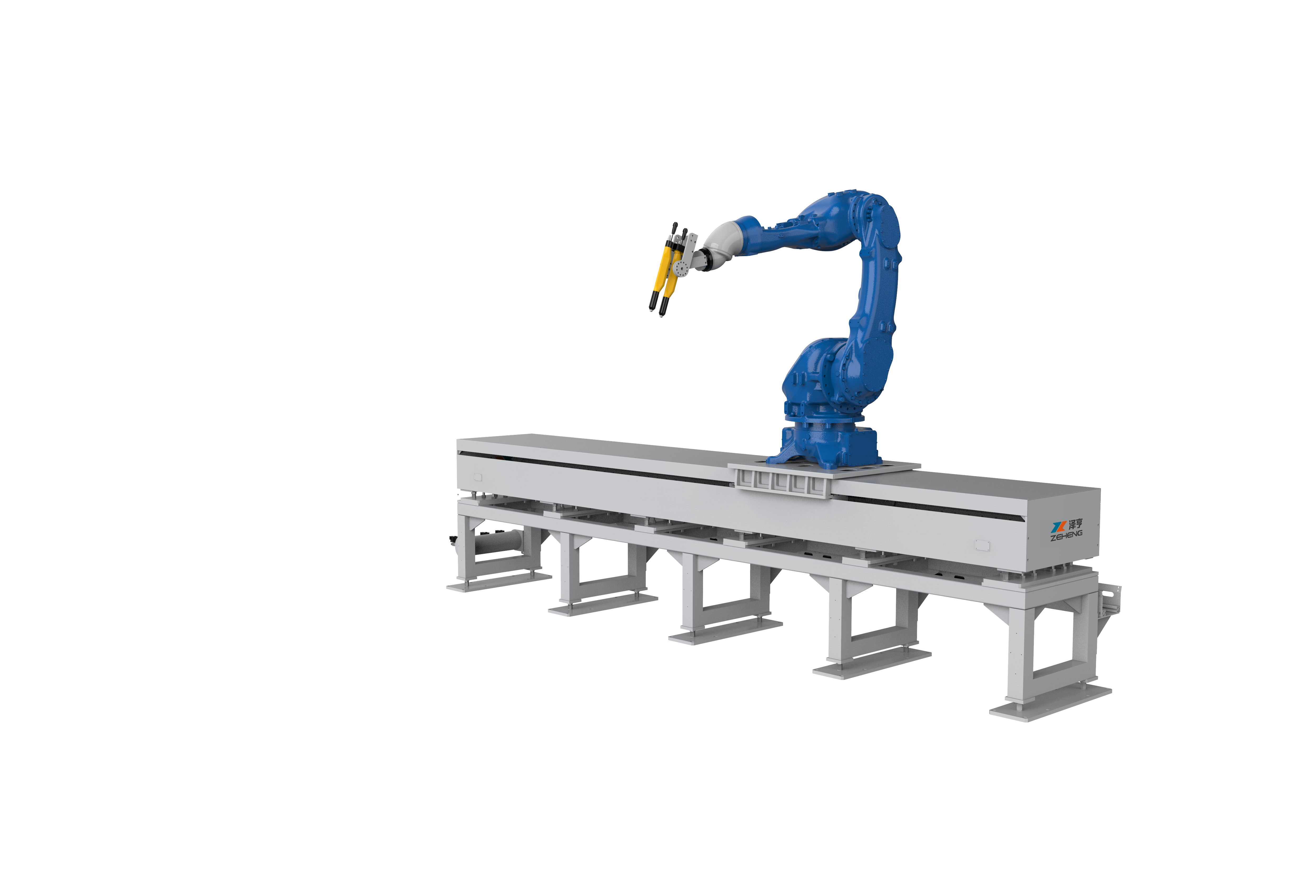

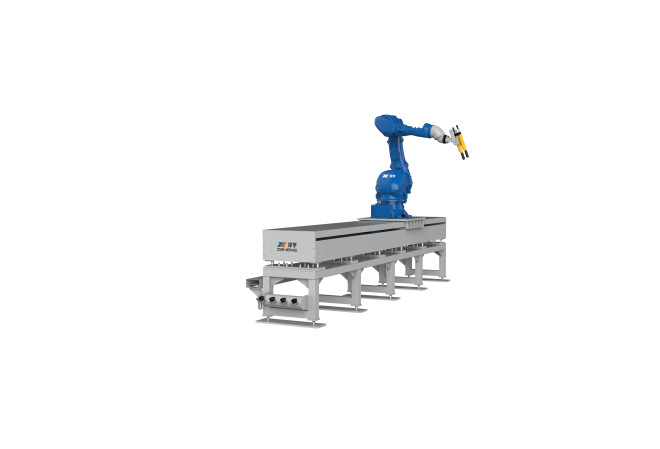

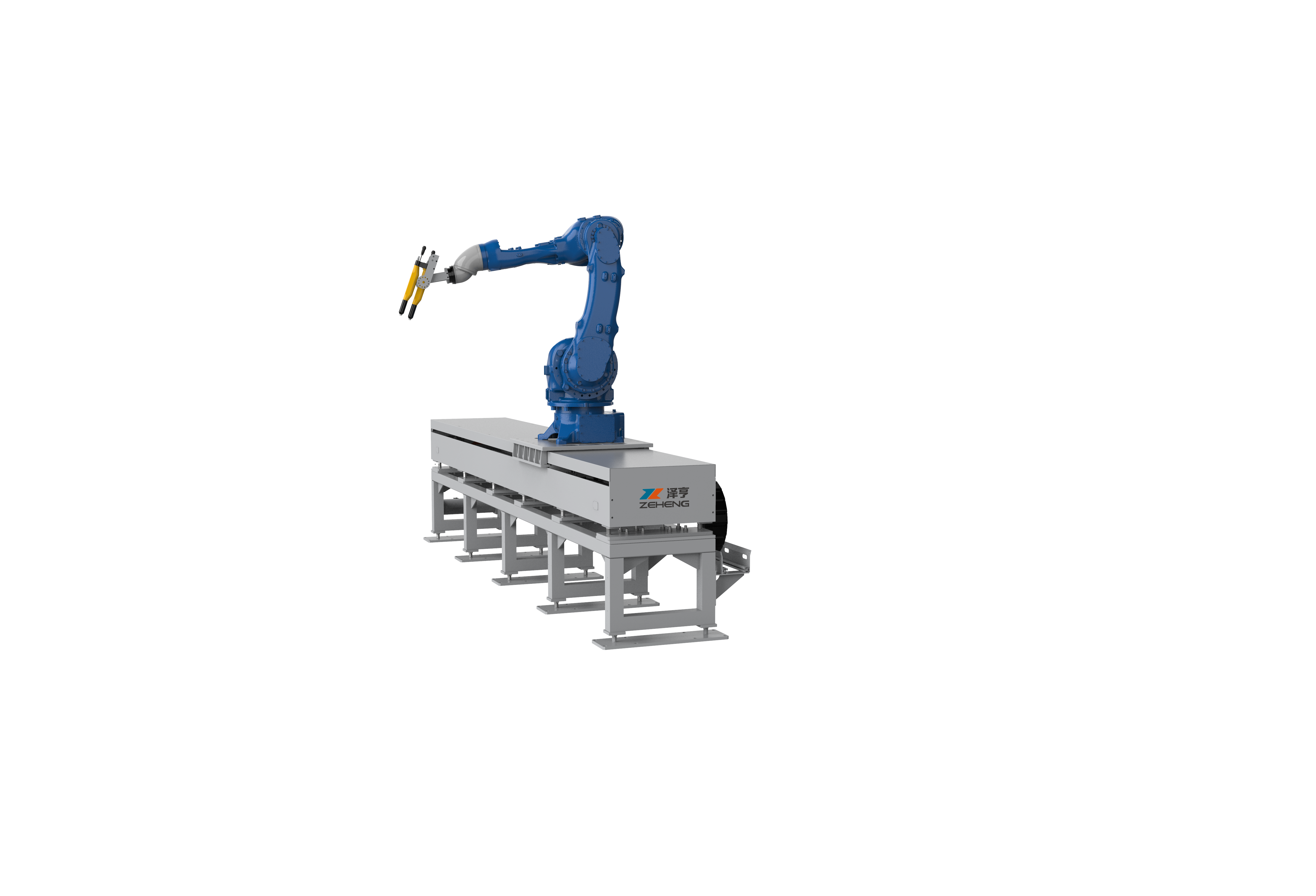

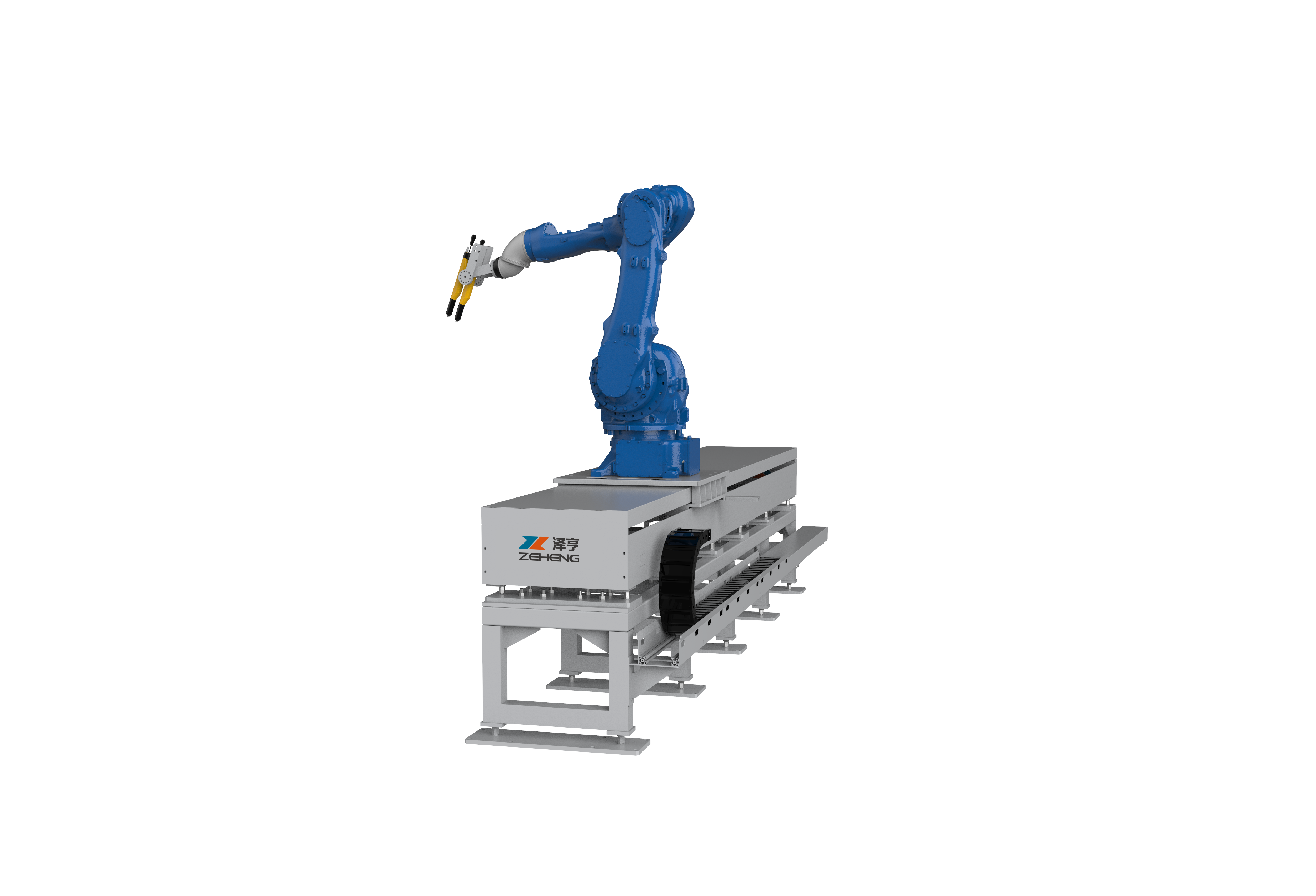

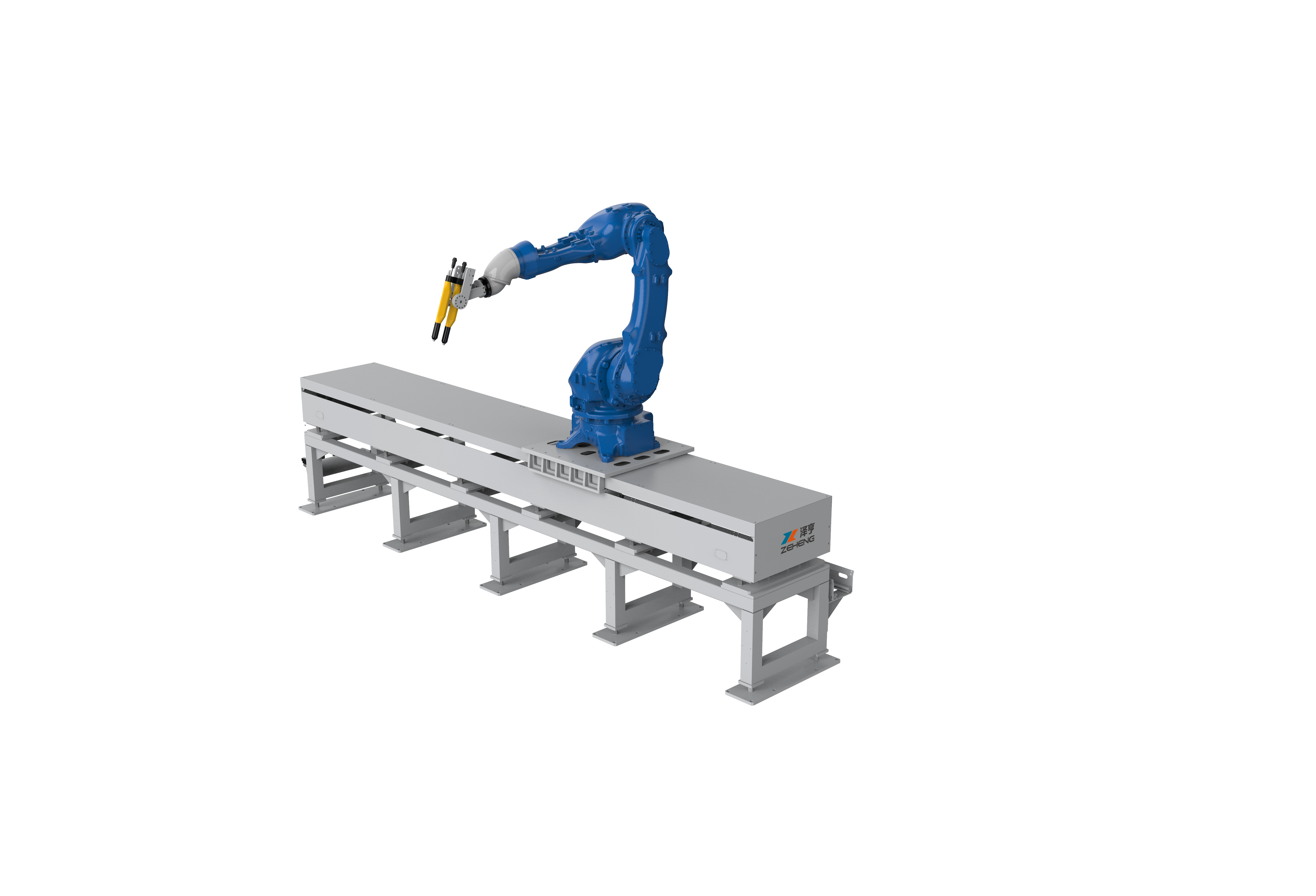

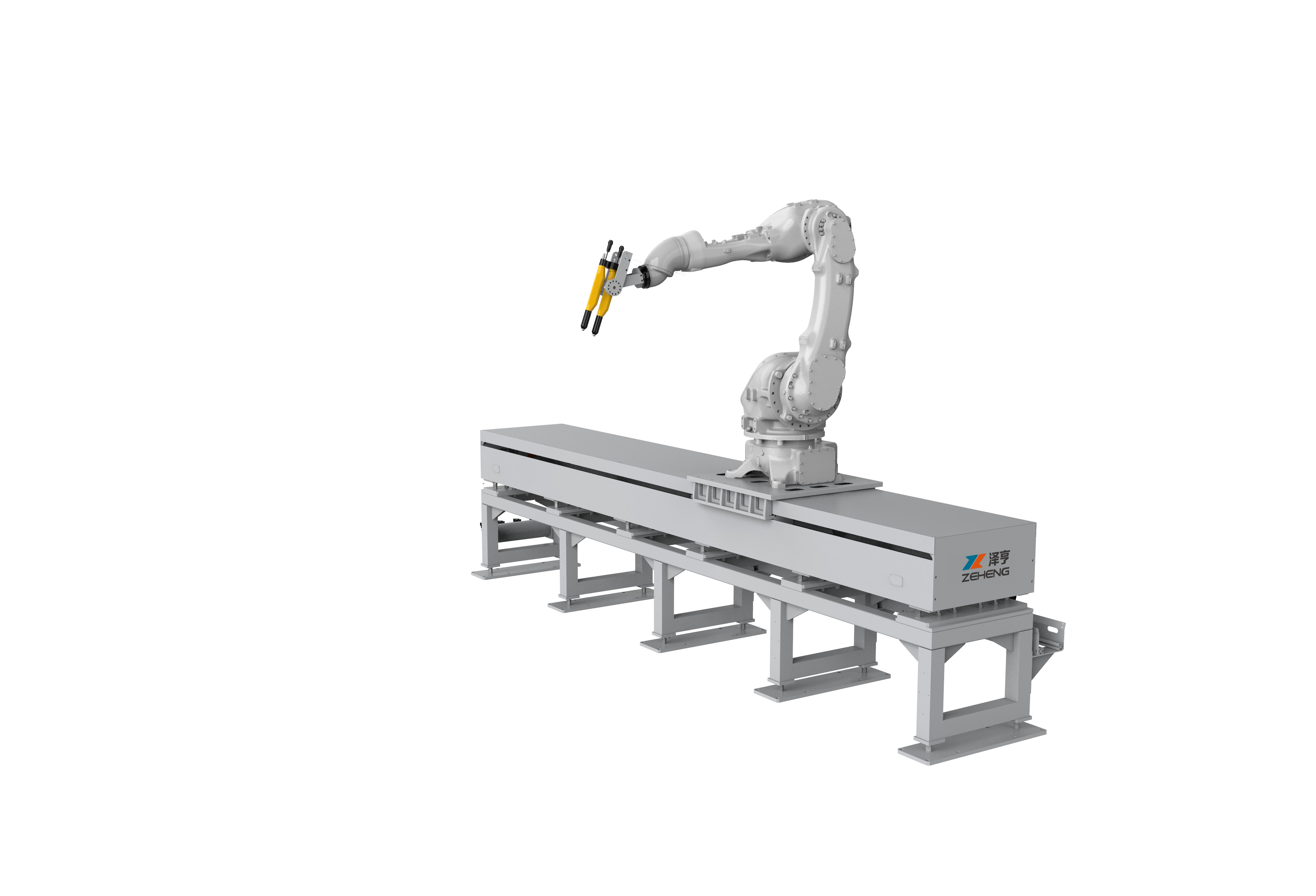

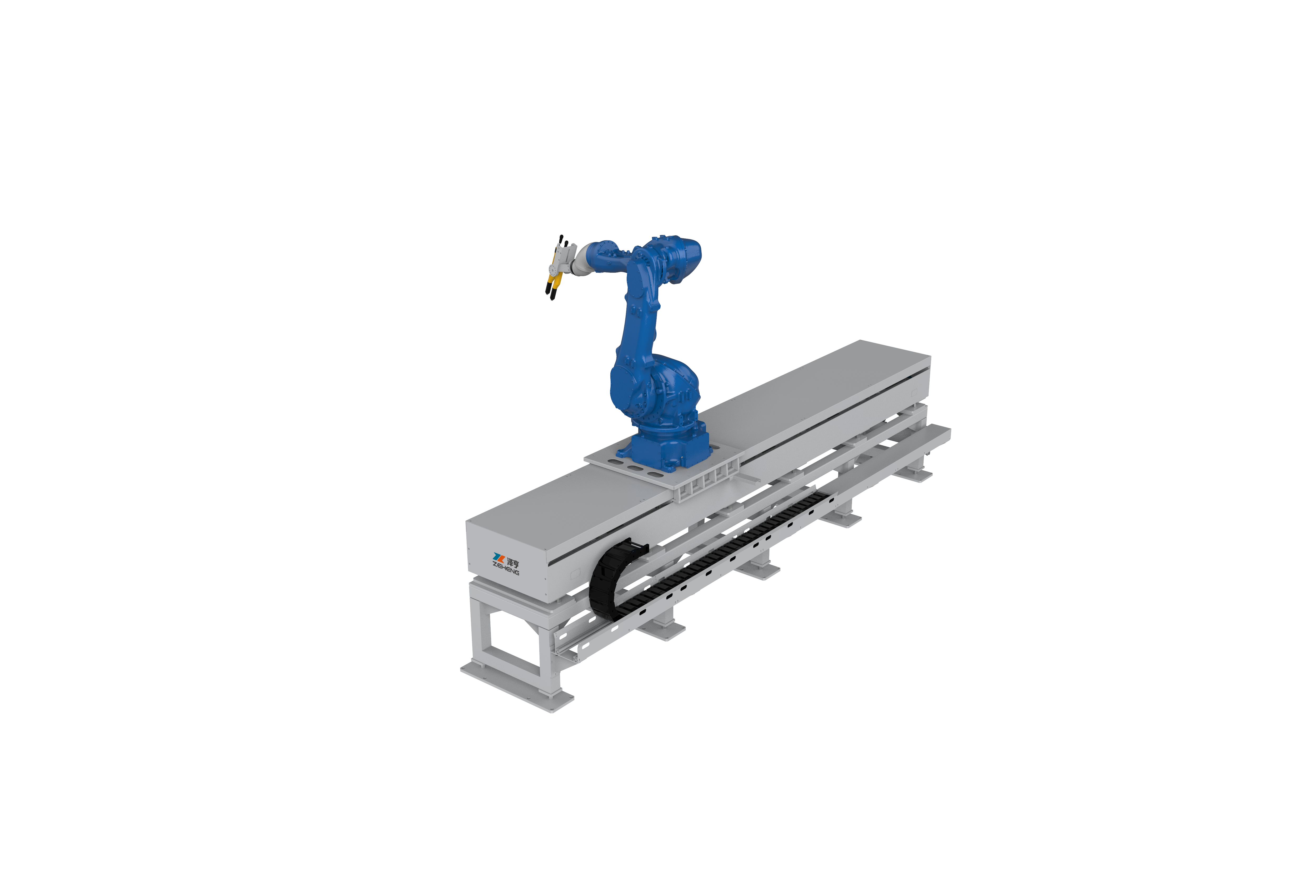

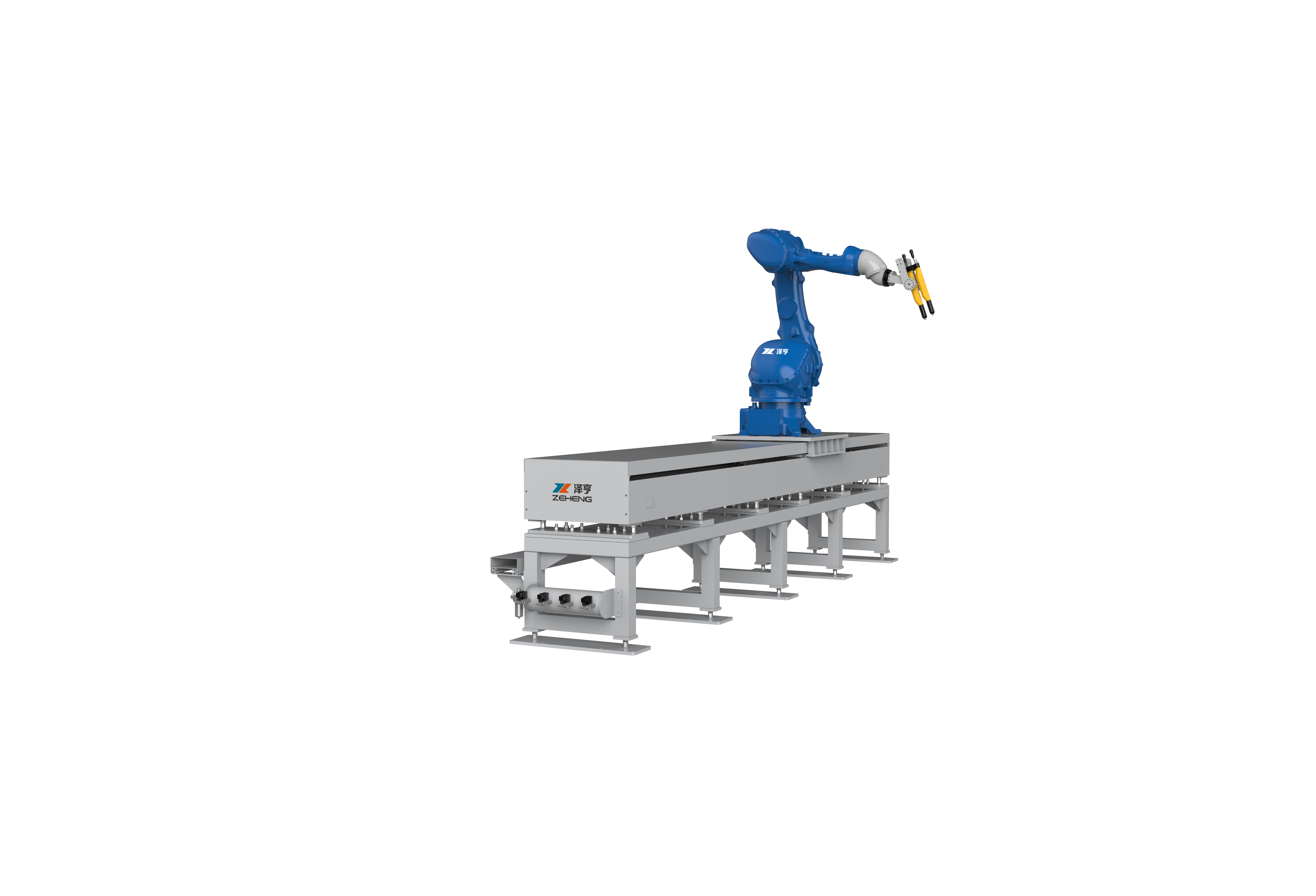

- Expands robot workspace: This product carries a robot for horizontal reciprocating motion and can program the trajectory of any effective position according to process requirements. It greatly expands the effective workspace of a single robot, achieving full-range automatic spraying of large and complex workpieces with a small number of robots.
- Dust-resistant: This product can be used in dusty environments and is resistant to dust. There is no risk of dust entering and jamming the system.
- Easy to clean: This equipment adopts a closed cover plate design, and the top dust is very easy to clean. It avoids the difficult-to-clean accordion cover and other structures that require frequent maintenance.
