POWDER COATING BOOTH SERIES

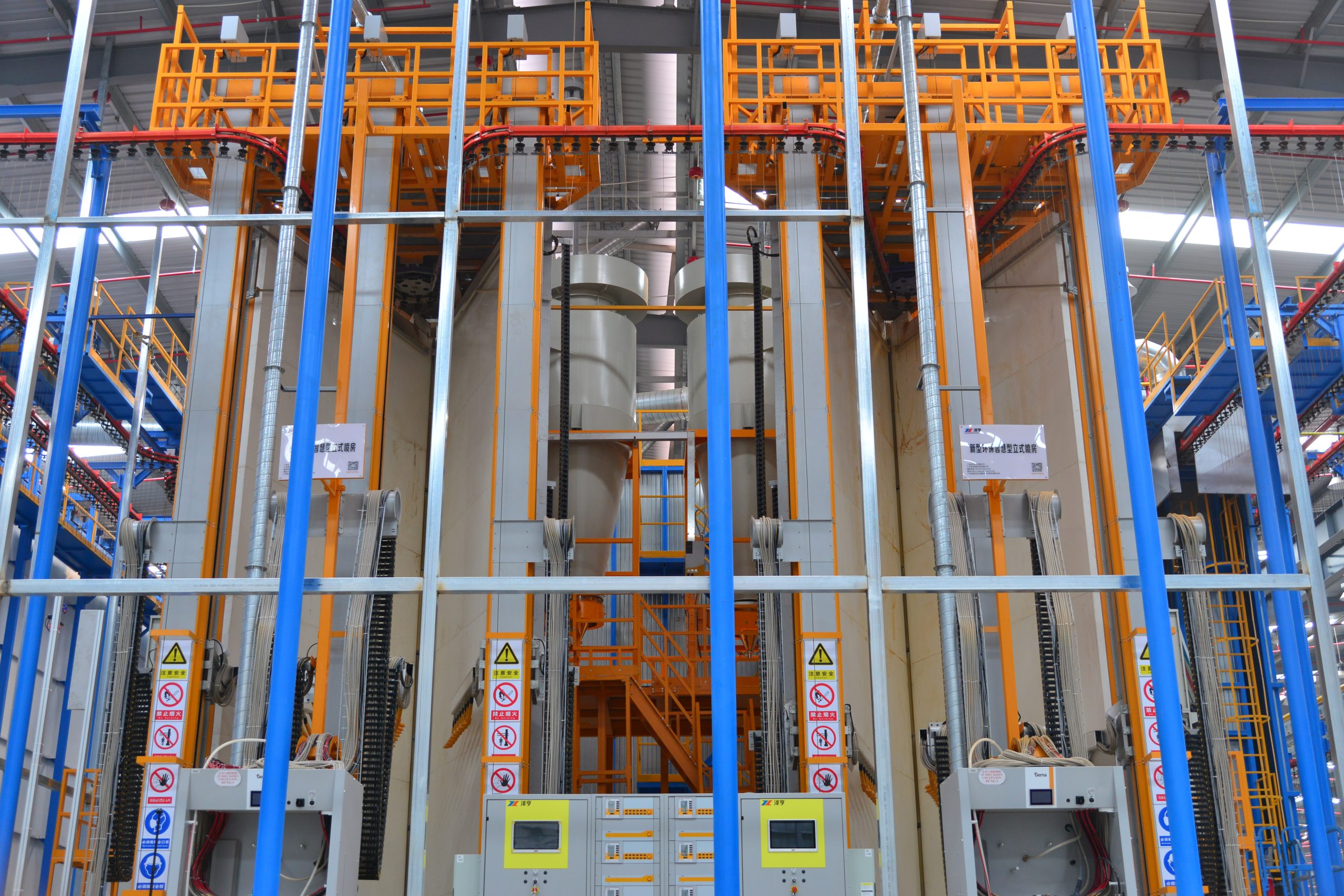

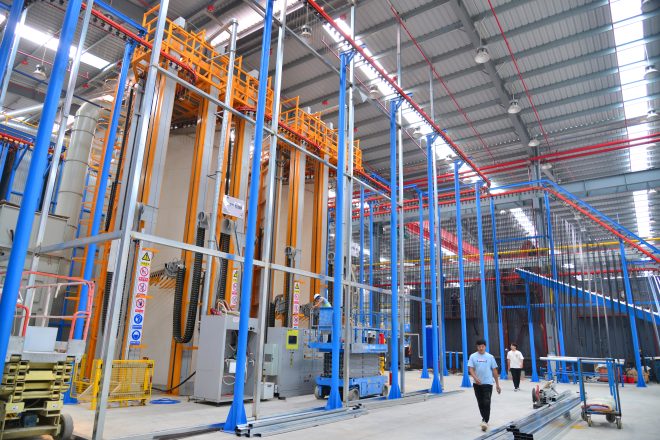

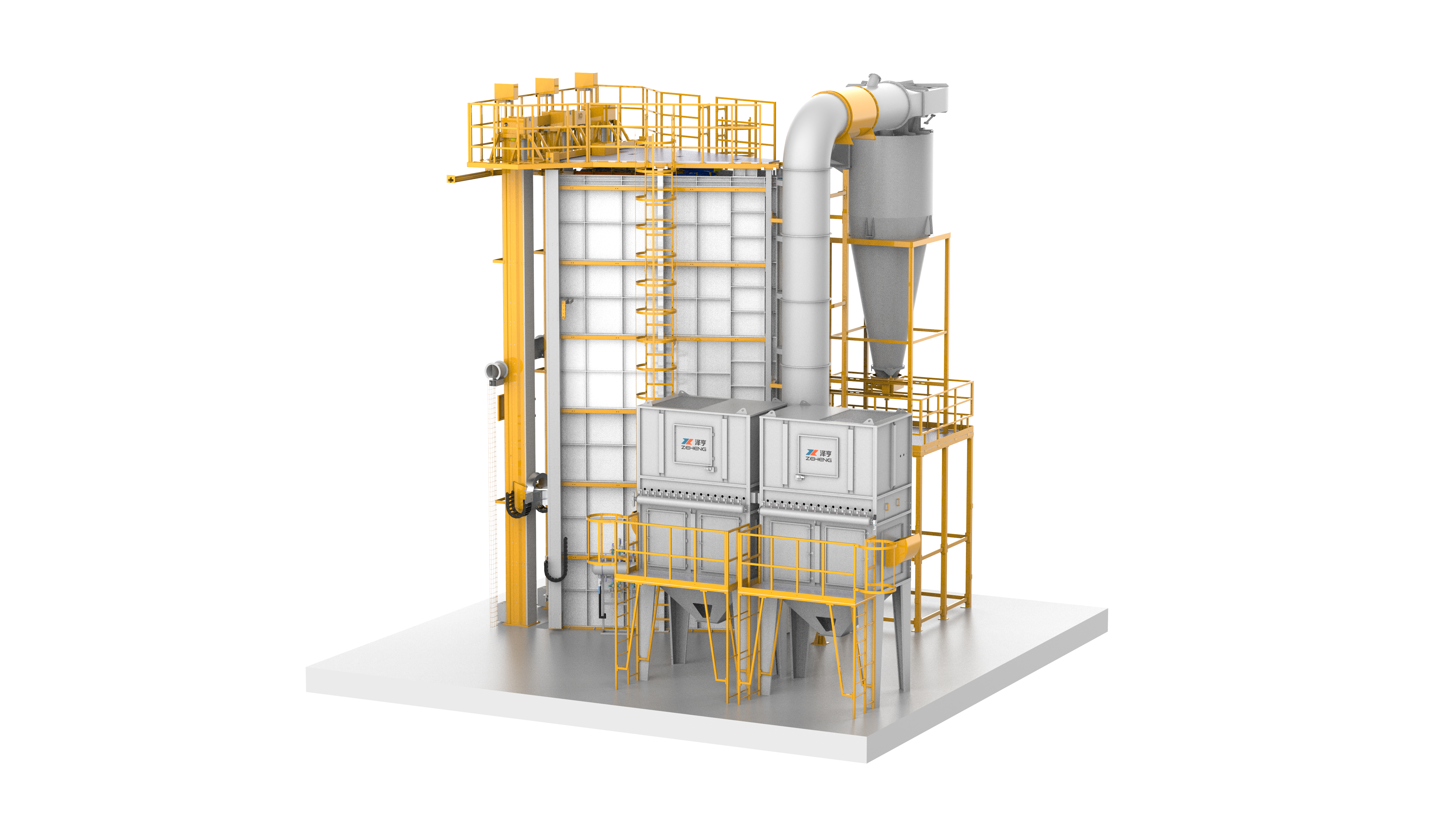

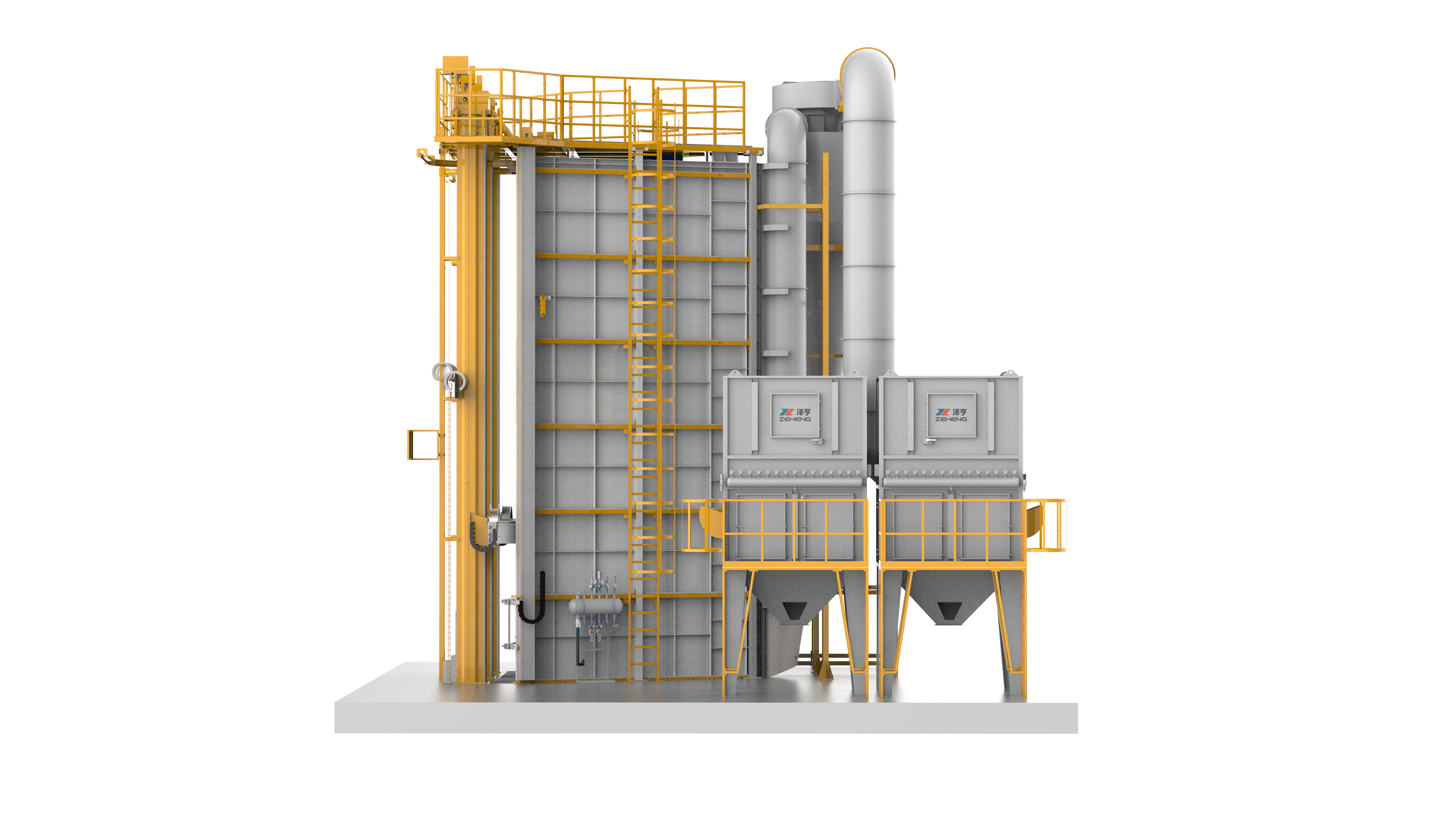

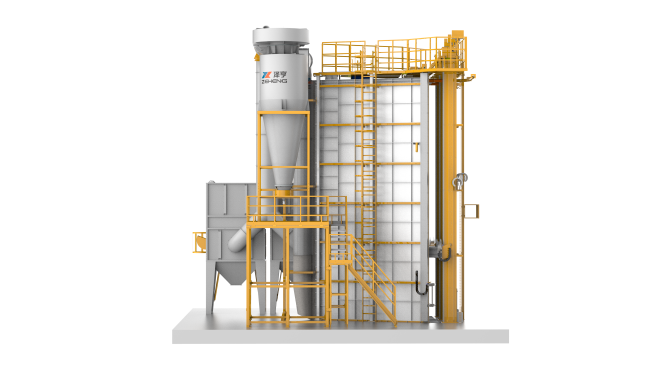

ZEHENG NR01 VERTICAL LINE POWDER COATING BOOTH SYSTEM

Send Enquiry

AN OVERALL CUSTOMIZATION SOLUTION FOR ALUMINUM PROFILE POWDER COATING

  • 19 Patents
  • 6 Industry-first
  • Functional designs
  • Energy saving
  • Save powder
  • Fast chain speed
  • Uniform and clean
  • Fast color change

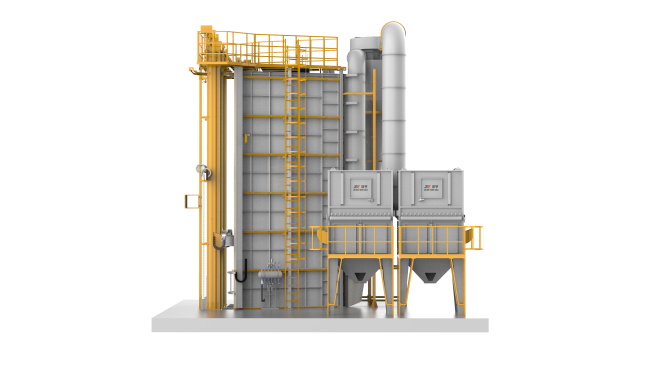

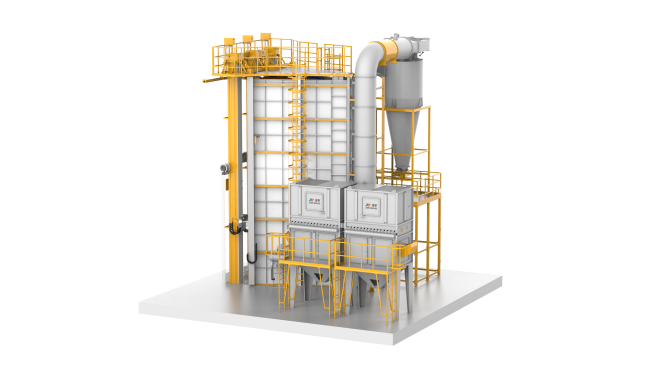

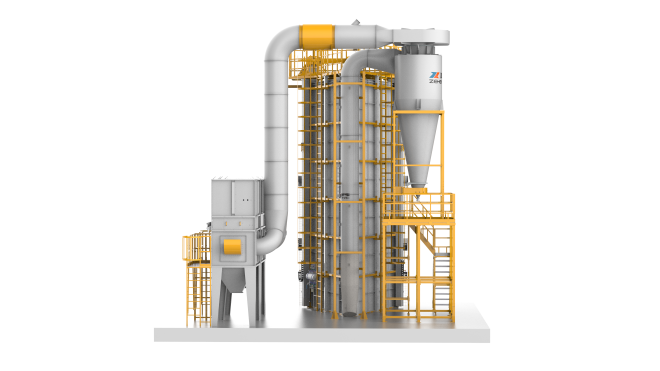

BASIC PARAMETERS

ZEHENG NR01-A
Overall dimension2500*10500mm
The effective coating areaOver 2800mm
ZEHENG NR01-B
Overall dimension3500*10500mm
The effective coating areaOver 5000mm
One powder coating booth can replace 2 additional booths
Power 45KW, Saving 50KW/h
Can be costumized

Our NR01 powder coating booth is designed with a range of features that enhance efficiency, safety, and cleanliness in your production environment. Here are some of the key features that make our booth stand out:

Deep V-shaped layout: Our booth is designed with a deep V-shaped layout that allows powder to enter the recovery system more easily, reducing wind resistance and improving recovery rates significantly.

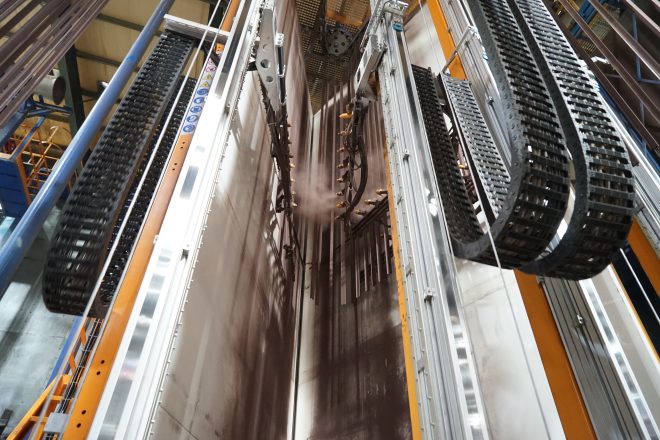

V-Shaped opposite spray gun layout: Both sides of the work-piece can be coated at the same time without the need for turning.

Industry-first intelligent exhaust system: Our booth features an intelligent exhaust system that adjusts the recovery airflow entry according to the spray gun’s movement, reducing energy consumption and enhancing recycling efficiency.

Integrated horizontal floor: Our booth is equipped with an integrated horizontal floor that eliminates blind spots and prevents powder accumulation, reducing equipment maintenance costs.

Intelligent lifting system: Our booth’s lifting system is equipped with an automatic reset function, dust-proof function, and dynamic balance self-coordination function. The positioning accuracy can be as accurate as 0.01mm, and it is equipped with an anti-fall device to protect your production safety at all times.

Great self-cleaning ability: Our booth is designed with a triple cooperation system that includes a high-pressure air-blowing device, an automatic cleaning air knife for hangers, and a pulsed full air knife at the bottom of the powder booth, ensuring a clean production environment.
